Hardware for your Eurorack system

Build your rack.
Make it Rogue.

Straightforward modular hardware, starting with the connections behind your sound.

Our products

01 / BD16

BD16

Eurorack power distribution bus board

Distribute power to up to 16 Eurorack modules from one board. The BD16 brings together shrouded 16-pin headers, screw-terminal power inputs, local bypass capacitors and LED indicators for the +12 V, −12 V and +5 V rails.

View manual Ask about the BD16

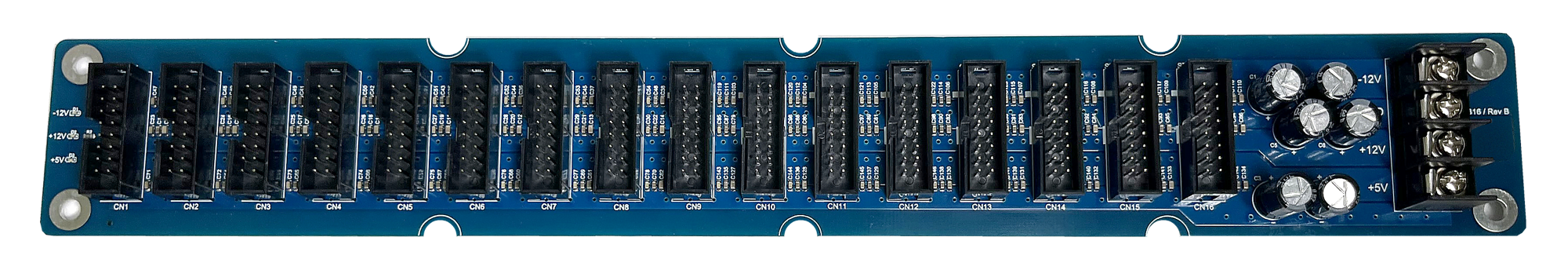

Rogue Modular BD16 bus board with sixteen module headers and screw-terminal power inputs

Module connections: 16 Shrouded 16-pin headers
Maximum per connector: 750 mA Per rail, at each connector
Maximum board total: 2,000 mA Per rail, across the whole board
Board dimensions: 311.15 × 43.18 Millimetres · 1 oz copper

An external regulated DC supply is required. Choose a supply that meets your modules’ current needs on every required rail. See the manual for wiring, mounting dimensions, power-supply selection and reference simulations.

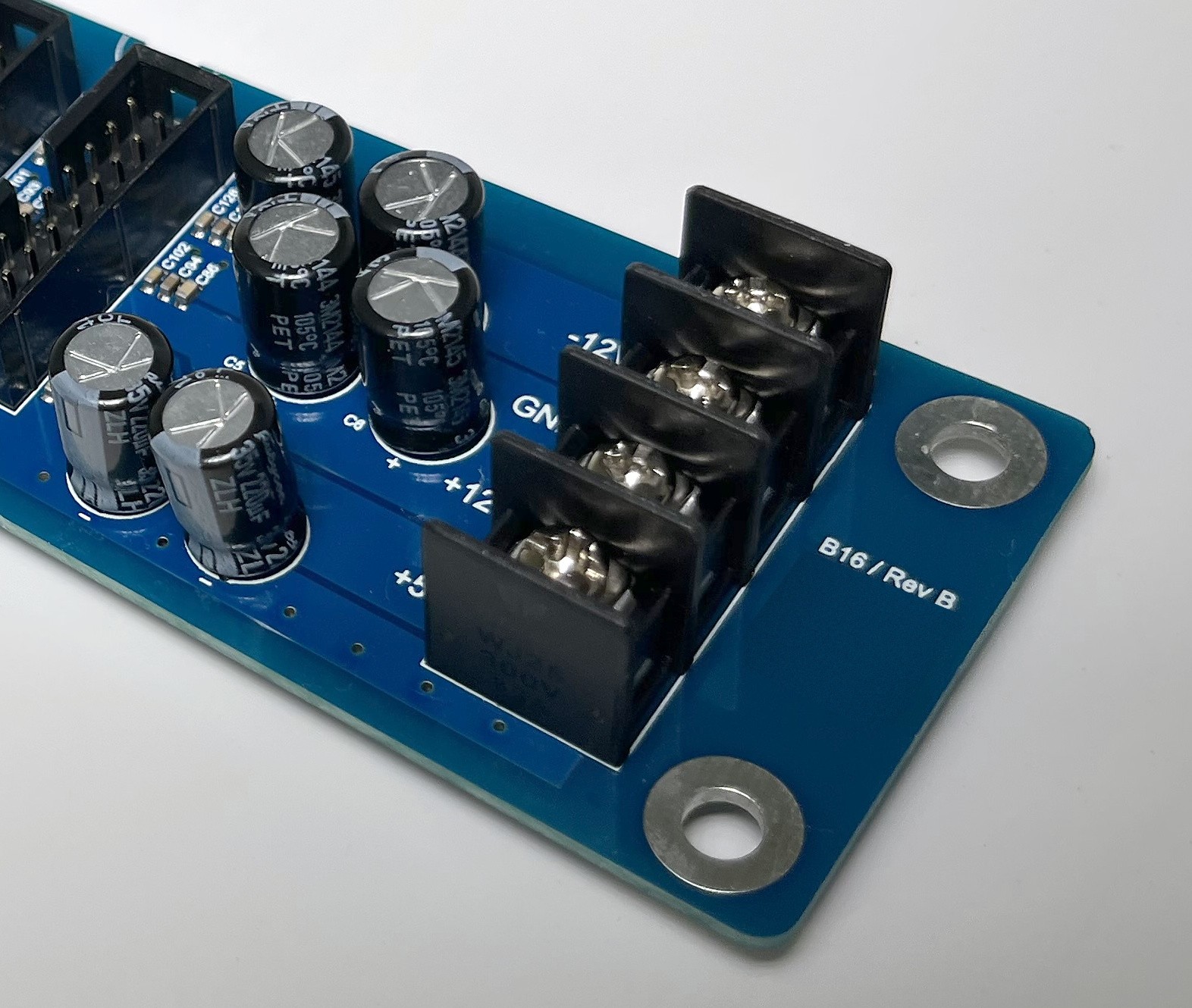

Close-up of the BD16 screw terminals, capacitors and module headers — A closer look at the power inputs and board layout.

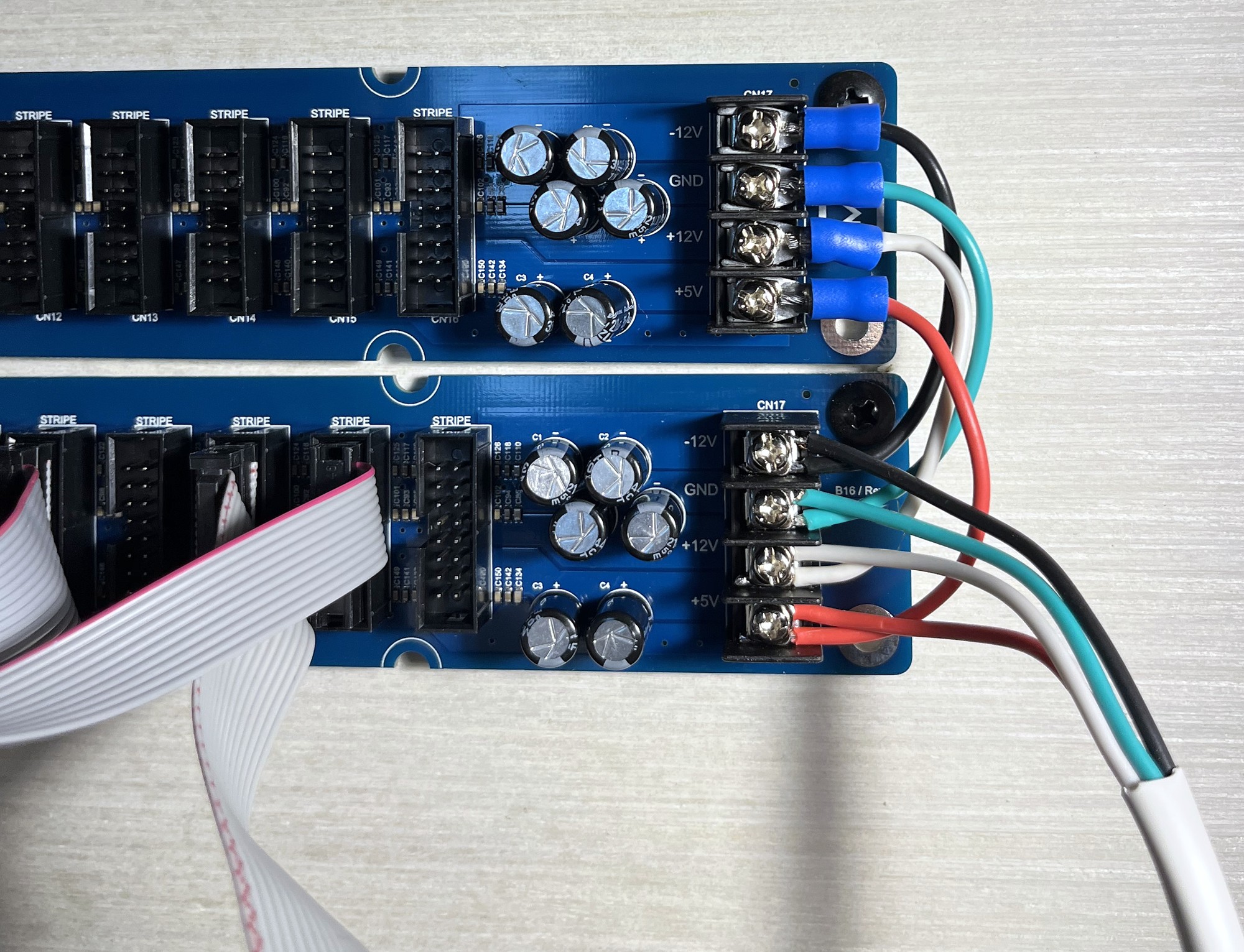

Two BD16 boards connected with spade-terminated power wiring — Example wiring between boards. Other equipment shown is for illustration.

About Rogue Modular

Kenneth Graham’s
hardware venture.

Rogue Modular is Kenneth Graham’s hardware venture and a division of Controlteam. It’s the hardware side of Kenneth’s work: a place to develop products for modular synthesizer systems.

The BD16 power distribution board is the first product featured here, connecting the modules behind your sound.

Follow along on Instagram: @RogueModular (opens in a new tab)

Contact

Let’s talk
about your rack.

For BD16 availability, product questions or help planning your setup, send us a note.
